Electric Hose Crimping Machine Automatic Pipe Pressing Machine Hydraulic Hose Crimper

  • 1
  • 2
  • 3

Brand Name : MENSION

Model Number : MS-51

Certification : CE RoHS

Place of Origin : CN

MOQ : 1 Set

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Sets Per Month

Delivery Time : 2 - 7 Working Days

Packaging Details : One Plywood For One Set

Price : Contact Us

Crimping Range : 14 - 87mm

Hose Size : 1/4-2inch

Die Sets : 10

Color : Blue

Max. Opening : 30mm

Crimping Force : 500T

Product Name : MS-51 AC Hose Crimping Machine

Application : Workshop

System Pressure : 31.5Mpa

Power : 3KW

Size : 670*430*820mm

Weight : 260Kg

Contact Now

Electric Hose Crimping Machine Automatic Pipe Pressing Machine Hydraulic Hose Crimper
HYDRAULIC AC HOSE CRIMPING MACHINE MS-51
MS-51 is a basic hose crimper machine with a crimping range of 1/4 inch to 2 inch. It features an ergonomic operating panel and offers both semi-automatic and automatic crimping modes. In semi-automatic mode, the user presses the button during crimping, while automatic mode requires only a single press to complete the crimping cycle automatically.
MAIN FEATURES
  • Forged one-piece crimping cylinder with high hardness
  • Two different operating modes available
  • Crimping reference sheet for easy setup and training
  • Pedal switch for flexible operation
  • Integrated working light for clear visibility during crimping
TECHNICAL SPECIFICATIONS
Model MS-51 AC Hose Crimping Machine
Crimping Range 14 - 87 (mm)
Crimping Force 500 (T)
Hose Size 1/4 - 2 (inch)
Max. Opening 30 (mm)
Die Sets 10
Die Set Type 51
System Pressure 31.5 (Mpa)
Accuracy 0.05 (mm)
Control MS
Standard Voltage 220 (V) / 380 (V)
Motor Power 3 (KW)
Length 670 (mm)
Width 430 (mm)
Height 820 (mm)
Weight 260 (KG)
Electric Hose Crimping Machine Automatic Pipe Pressing Machine Hydraulic Hose Crimper
51 HOSE CRIMPER DIE SETS
Die No. Crimping Range Length
6* 6 - 8 mm 35
8* 8 - 10 mm 35
10* 10 - 12 mm 35
12* 12 - 15 mm 35
15 15 - 19 mm 60
19 19 - 23 mm 60
23 23 - 26 mm 60
26 26 - 31 mm 60
31 31 - 36 mm 70
36 36 - 41 mm 70
41 41 - 47 mm 70
47 47 - 55 mm 80
55 55 - 63 mm 80
63 63 - 69 mm 80
69* 69 - 76 mm 90
* for non-standard die sets
Customized die sets are available
Special voltages 110V, 208V, 240V, 415V available
OPTIONAL ACCESSORIES
  • Quick Change Tool
  • Quick Change Die Set Rack
HIGH HARDNESS DIE SETS FOR NORMAL HOSE CRIMPING
Electric Hose Crimping Machine Automatic Pipe Pressing Machine Hydraulic Hose Crimper
LARGE WORKING STROKE FOR EASY BIG SIZE HANDLING
Electric Hose Crimping Machine Automatic Pipe Pressing Machine Hydraulic Hose Crimper

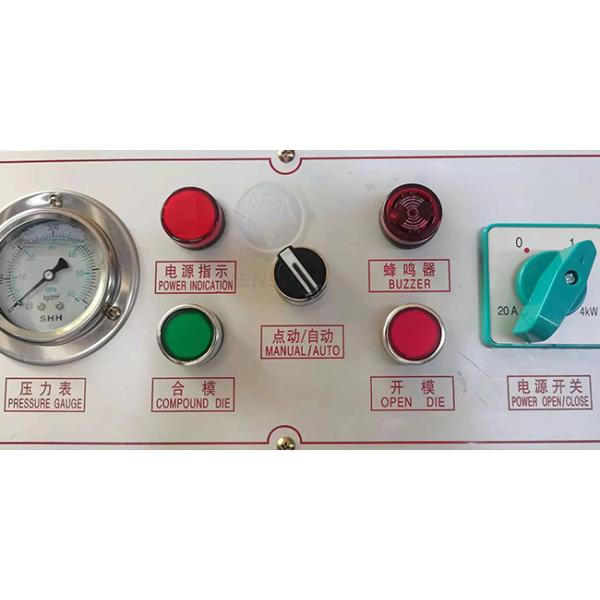

MULTI-FUNCTION OPERATING PANEL FOR CONVENIENT USE
Electric Hose Crimping Machine Automatic Pipe Pressing Machine Hydraulic Hose Crimper

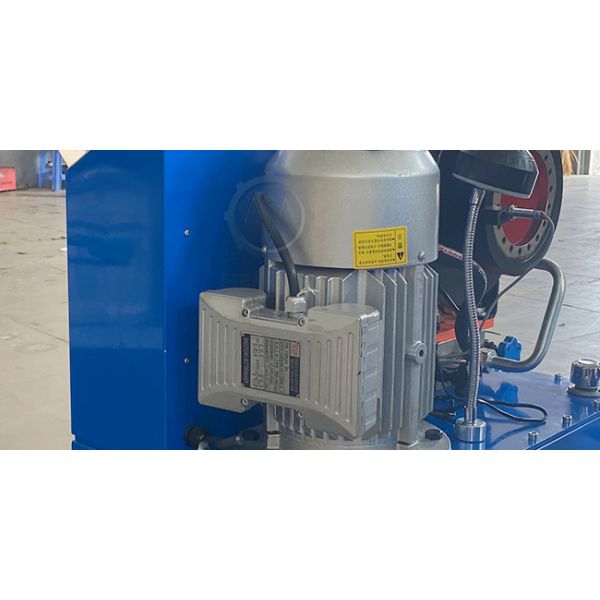

HIGH QUALITY MOTOR WITH POWERFUL PERFORMANCE AND LONG SERVICE LIFE
Electric Hose Crimping Machine Automatic Pipe Pressing Machine Hydraulic Hose Crimper
